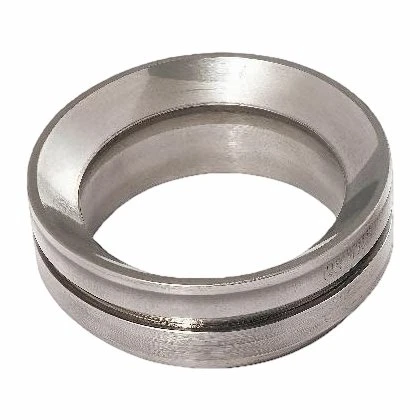

| 316L Stainless hlau rooj zaum | ||
| Qhov Loj | 1/2 "mus rau 56" (Qhov ntau thiab tsawg muaj) | |
| Kev ntsuas siab | PN10-PN420 (Class 150-2500) | |
| Khoom siv lub cev | A105, A350 LF2, A182 F304, A182 F316, A182 F321, A182 F51, A182 F53, A182 F55, A182 F60, A182 F44, A564 630 (17-4PH) INCONEL625, INCONEL718, INCONEL825, Monel 400, Monel 500 thiab lwm yam |
|
| Txheej Txheem / Txheej | ENP, HCR, STL6, STL12, STL20, Cr3C2, WC-Co, WC-Cr3C2-Ni, TiC-NiMo, SiC, CrC, ZrO2, Al2O3, Cr2O3, ZnO, TiO, Al2O6, SL1, STL12, Ni60, Ni55, Ni45 thiab lwm yam. | |
| Kev khiav hauj lwm qhov kub thiab txias | Tsawg dua lossis sib npaug li 1200 degree | |
| Qeb Parameter | Core Technical Parameters | Cov qauv rau kev txiav txim siab Advanced Technological Level |
| Machining Seat raug | Tsawg dua los yog sib npaug li 0.025 mm | Tsawg dua lossis sib npaug li 0.005 mm (Ultra-High Precision) |
| Processing Rooj Roundness | Tsawg dua los yog sib npaug li 0.025 mm | Tsawg dua lossis sib npaug li 0.011 mm (Micron-Level ) |
| Lwm yam tshuaj ntxiv | Tsawg dua los yog sib npaug li 0.4 μm | Tsawg dua lossis sib npaug li 0.1 μm (Daim iav-Level) |
| Qeb Parameter | Core Technical Parameters | Cov txheej txheem rau High-End Technical Level |
| Txheej Thickness Tswj | Thickness Uniformity | Thickness sib txawv ntawm txhua txoj hauj lwm kheej kheej Tsawg dua los yog sib npaug rau ± 8% ( nruj dua li cov qauv dav dav ± 10%) |
| Thickness Tolerance Range | 100 - 300 μm (ntau ntau yam rau hnav- cov khaubncaws sab nraud povtseg); Cov kab tshwj xeeb tuaj yeem raug sau tseg. Tsis txhob plam txau rau ultra- txheej txheej (<10μm) | |
| Txheej Adhesion Performance | Nto Hardness | HV 1300+ |
| Bond StrengthBond Strength | Ntau dua lossis sib npaug li 80 MPa | |
| Interface Porosity Interface Porosity | <0.5% | |
| Txheej Nto Zoo | Nto Roughness (Ra) | Tsawg dua los yog sib npaug li 0.2 µm |
| Spraying Accuracy (Positioning & Coverage) | Txau qhov chaw raug | ± 0.1 hli |
316L Valve Rooj: Ib qho kev sib txuas ntawm kev ua tau zoo, Precision, thiab Flexibility
Superior Corrosion Resistance thiab Material Assurance
Ntawm lub hauv paus ntawm peb Stainless Steel Valve Rooj zaum sseries yog 316L, cov khoom uas nws qhov tseem ceeb kom zoo dua nyob rau hauv qhov sib ntxiv ntawm Molybdenum (Mo). Qhov no muab nws qhov kev txhim kho zoo heev rau pitting thiab crevice corrosion piv rau tus qauv 304 stainless hlau, ua rau nws tshwj xeeb tshaj yog haum rau cov dej xov xwm uas muaj chlorides thiab ntau yam tshuaj ib puag ncig. Peb tswj nruj tswj hwm cov ntaub ntawv raw rau peb 316L Stainless Steel Valve rooj zaum, kom ntseeg tau tias cov ntsiab lus tsawg tsawg los txo cov kev cuam tshuam ntawm intergranular corrosion thaum lub sij hawm vuam thiab machining, yog li lav lub sijhawm ntev - kev pabcuam kev ntseeg siab ntawm lub rooj zaum hauv kev ua haujlwm nyuaj.
Precision Dimensional Control thiab Deg tiav
Txawm hais tias ua haujlwm ua ib qho tseem ceeb 316L Valve Lub Cev Lub Cev Lub Cev lossis raws li tus neeg sawv cev SS316L valve lub rooj hloov pauv, peb siv tib cov qauv kev tsim khoom nruj me ntsis. Siv CNC machining siab heev thiab zoo- cov txheej txheem sib tsoo, peb ua tib zoo tswj cov geometric tolerances thiab nto tiav ntawm peb cov rooj zaum Stainless hlau. Qhov no ua kom muaj kev sib haum xeeb zoo meej thiab kev sib khi zoo sib xws, ua rau muaj kev ua haujlwm tsis zoo, xoom-kev ua tau zoo, thiab lub neej ntev kev pabcuam valve.
Daim Ntawv Qhia Cov Khoom Siv thiab Kev Pabcuam Customization
Peb muab cov kev daws teeb meem 316L valve rooj zaum, npog qhov dav dav los ntawm qhov ntau thiab tsawg mus rau qhov tsis yog - qauv kev cai. Peb pab pawg neeg tsim khoom tuaj yeem muab kev tsim kho kom zoo thiab kev pom zoo ntawm cov ntaub ntawv raws li koj qhov tshwj xeeb valve tsim, kev ntsuam xyuas siab, thiab cov yam ntxwv ntawm kev tshaj tawm, ua kom lub rooj zaum valve haum zoo rau koj qhov kev xav tau.
Vim li cas thiaj xaiv Peb 316L Stainless Hlau Valve Rooj?
2.Tus nqi zoo heev -Kev Ua Tau Zoo:Thaum muab cov kev tiv thaiv corrosion zoo heev, 316L Stainless Steel Valve Rooj zaum muab tus nqi ntau dua - kev xaiv zoo dua piv rau qib siab dua - qib alloys, ua rau lawv qhov kev xaiv zoo tshaj plaws rau cov cheeb tsam nruab nrab corrosive.
3.Consistent Manufacturing Quality:Peb cov txheej txheem tsim cov txheej txheem ua tiav kom ntseeg tau tias txhua pawg ntawm SS316L lub rooj zaum muaj qhov tshwj xeeb zoo sib xws thiab kev sib hloov, ua kom yooj yim rau koj cov khoom thiab kev tswj xyuas cov khoom muag.
4.Robust Supply Chain Assurance:Raws li cov chaw tsim khoom ntawm lub rooj zaum tseem ceeb, peb tuaj yeem muab cov khoom ruaj khov thiab raws sijhawm ntawm Stainless Steel rooj zaum, txhawb nqa koj qhov project thiab cov sijhawm tsim khoom.
Thaum koj xav tau kev siv dav dav, ua tau zoo, thiab tus nqi -kev sib khi zoo, 316L Stainless Steel Valve Rooj zaum yog qhov kev xaiv zoo.
Cim npe nrov: Tuam Tshoj 316l stainless hlau valve rooj zaum manufacturers, hoobkas
